PRODUCTS - Four Post Hoists

P-408HP Peak Parking Lift 3500KG

Peak P-408-HP 4-POST PARKING LIFT -Higher lift model with 355mm(14") higher in lifting than 408-P.

The P-408-P 3500kg Car Stacker is a space-saving powerhouse—ideal for both residential and commercial garages with limited floor space.

Maximise Your Parking Efficiency
Roughly the size of a standard parking space, the P-408-P allows you to double your parking capacity without the need for special foundations or complex installation.

Key Features:

  • PEAK’s exclusive hidden safety locks for a cleaner look and added security

  • Adjustable locking ladders ensure perfect levelling

  • Manual single-point lock release for easy operation

  • Flexible control column placement – install the motor and lock control on any corner of the lift

  • Removable ramps that store neatly between runways

  • Double-"S" shaped columns for enhanced structural strength and durability

  • Full commercial-grade double safety locking system

  • Four steel safety stops included as standard to prevent accidental roll-off

Included Accessories:

  • 4 x Plastic oil drip trays

  • 1 x Jack tray

  • Hydraulic oil

  • Floor mounting bolts

Optional Accessories:

  • Jacking beams available on request

  • Portability
    Designed for easy relocation, this lift can be moved effortlessly with the optional Caster Kit (4 pcs).

Certified & Supported

  • Fully CE Safety Certified

  • Backed by Automaster Equipment’s complete inventory of parts for ongoing support

Please note: Delivery and installation are not included in the listed price.

  • Single point locking release
  • Adjustable locking ladders for perfect levelling
  • PEAK’s exclusive hidden safety locks
  • Install the control power side column on any corner
  • Ramps easily removed for storage
  • Jack tray included
  • 4 x Drip trays come as standard
  • oil and floor bolts included
  • Double S shape columns
  • Optional Caster kit
  • Optional jacking beam

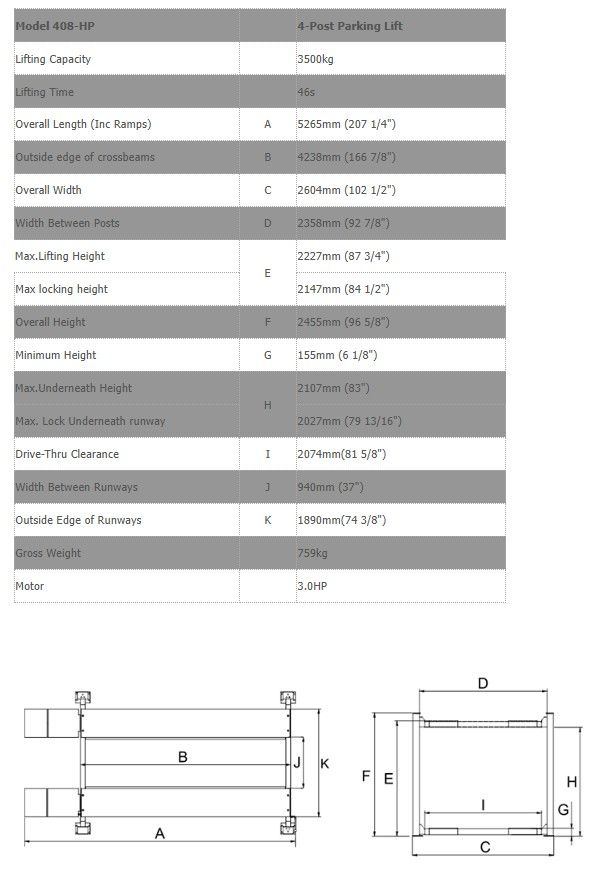

Model 408-HP



4-Post Parking Lift

Lifting Capacity



3500kg

Lifting Time



46s

Overall Length (Inc Ramps)

A

5265mm (207 1/4")

Outside edge of crossbeams

B

4238mm (166 7/8")

Overall Width

C

2604mm (102 1/2")

Width Between Posts

D

2358mm (92 7/8")

Max.Lifting Height

E

2227mm (87 3/4")

Max locking height

2147mm (84 1/2")

Overall Height

F

2455mm (96 5/8")

Minimum Height

G

155mm (6 1/8")

Max.Underneath Height

H

2107mm (83")

Max. Lock Underneath runway

2027mm (79 13/16")

Drive-Thru Clearance

I

2074mm(81 5/8")

Width Between Runways

J

940mm (37")

Outside Edge of Runways

K

1890mm(74 3/8")

Gross Weight



759kg

Motor



3.0HP

Peak Warranty conditions from 01-06-2022

  • Steel structure components including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Base frame etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for TWO YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for TWO YEARS.
  • 4 Post parking lifts warranty as above when installed as a home workshop or parking lift. Not in commercial workshop use environment.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
