P-209C-S Peak 2 Post Clear Floor Car Hoist - 4000kg

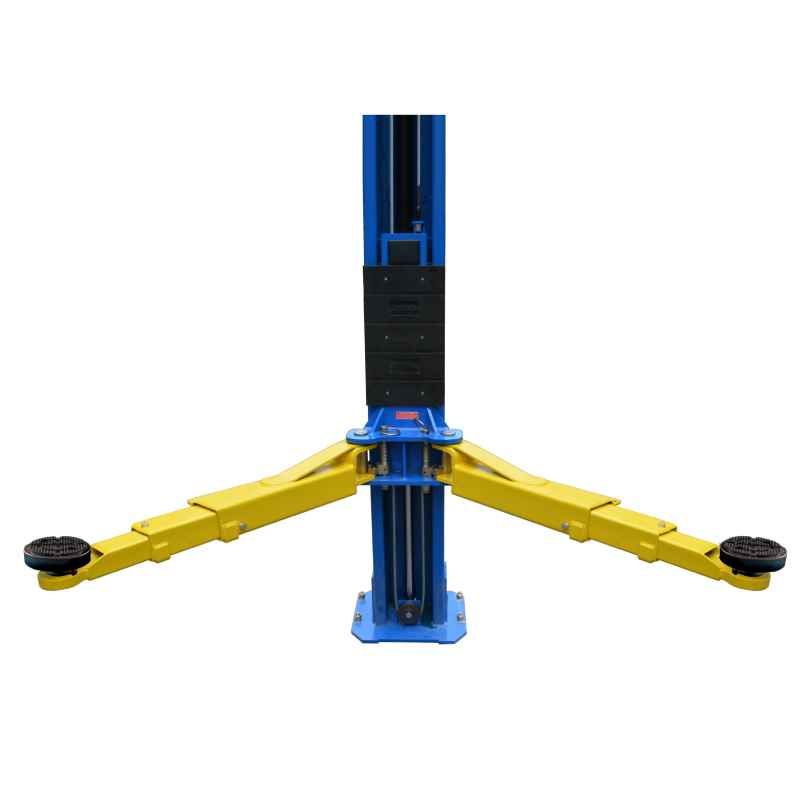

CLEAR FLOOR DIRECT-DRIVE TWO-POST LIFT

Now available in Dark Grey or Blue colours

With standard features that include two height settings – low or high setting to suit different roof heights

With the single sided lock release there is no need for the operator to go to the other side of the lift and manually unlock both column locks, (as seen in most low cost lifts), and this complies with our local regulations

Only needing 100mm of concreate and single phase power supply this is the perfect lift for you home workshop

Direct drive full length hydraulic cylinders and quality powder coated finish.

Supplied with screw up feet & stackable adapters as standard supply.

The lock system is automatically activated as the lift is raised..

All lifting and lowering operations are controlled from one column.

4 three-stages arms are suitable for more a wide range of vehicles

Available in single phase or three phase power supply

The Clear-floor design, provides unobstructed floor use and overhead safety shut-off device prevents high top vehicles from damage.

Automaster Equipment stock a complete inventory of parts for the equipment we sell.

This lift only needs 100mm of Reinforced concrete

FULLY CE (EUROPEAN) SAFETY CERTIFIED,

LOW COST COMMERICAL GRADE

  • 4000kg (9,000lbs) capacity.
  • Full length dual hydraulic direct-drive cylinders minimizes the number of moving parts to maintain and repair
  • 4 three-stages arms are suitable for more vehicles.
  • 3/8" aircraft quality balance cable is used for synchronization.
  • Single-point safety release, allow technican to disengage both column simultaneously.
  • Self-lubricating UHMW Polyethylene sliders and bronze bushes.
  • Clear-floor design, provide unobstructed floor use.
  • Overhead safety shut-off device prevents vehicle damage.

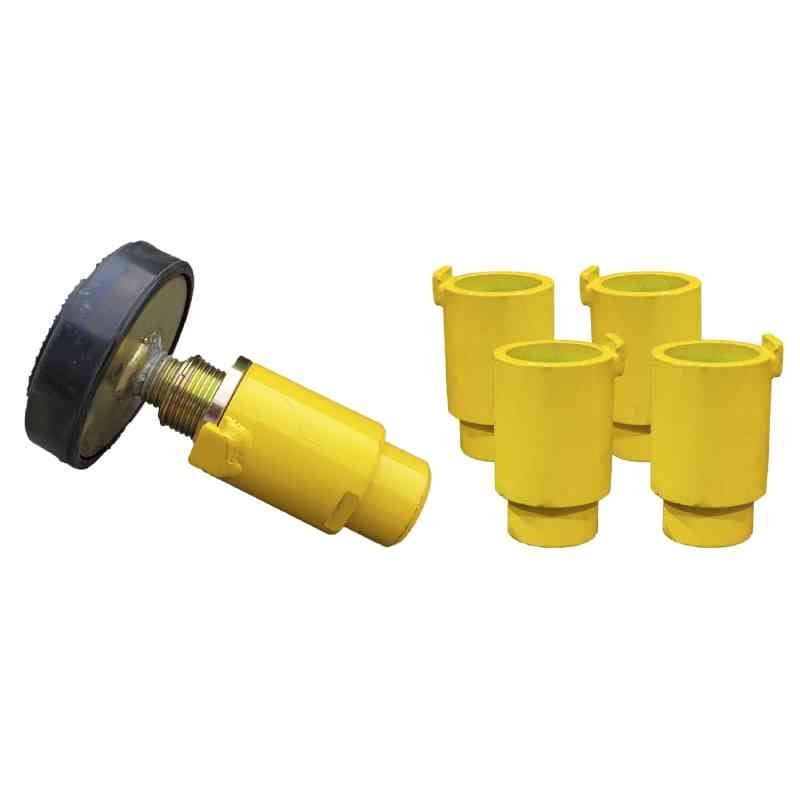

  • Screw up rubber pads and stackable adapters
  • Large Rubber door protector guards

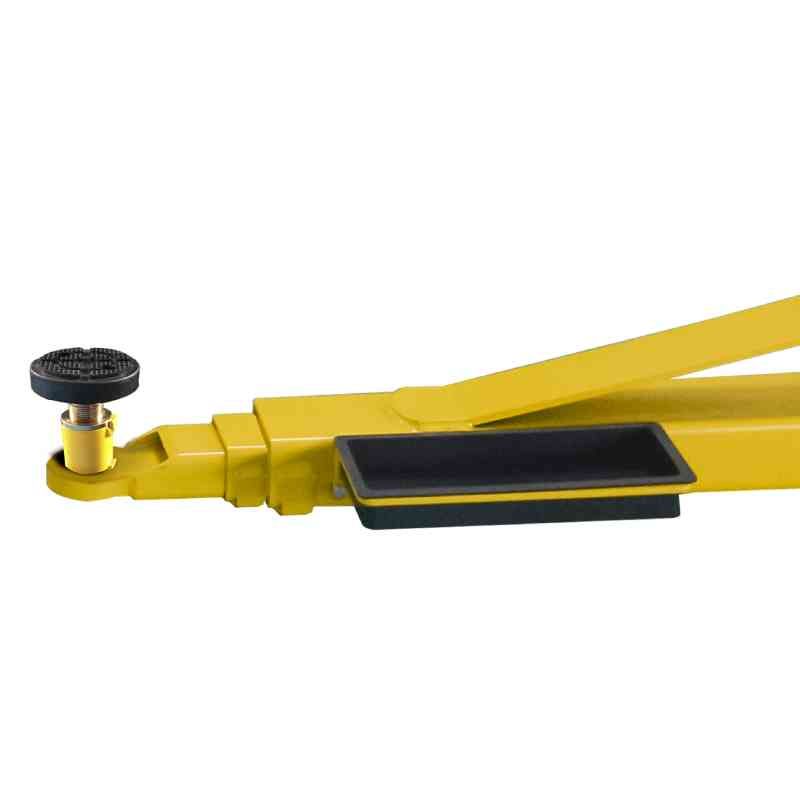

  • Standard toe guards & tool trays (x2) on lifting arms
  • Two height setting for top cross bar accommodates varying ceiling heights
  • European CE Safety Certified
  • Optional 610mm Height Extension - (Height 4431mm)
  • Optional 150mm Width Extension Kit - (Width 3000mm)
  • Optional screw up feet





Model 209C



Clear Floor two post lift

Lifting Capacity



4000kg (9,000 lbs)

Lifting Time



57s

Max. Lifting height: (w/o extension adapter)

A

1815mm (71 1/2" )~1863mm(73 3/8")

Max. Lifting height:  (w/ extension adapter)

1891mm (74 7/16")~1939mm(76 5/16")

Max. lock height:  (w/o extension adapter)

1768mm (69 5/8" )~1816mm(71 1/2")

Max. lock height:  (w/ extension adapter)

1844mm (72 5/8" )~1892mm(74 1/2")

Overall Height

B

3635mm (143 1/8")

3835mm（151"）

Overall Width

C

3428mm (135")

Drive-Thru Clearance

D

2528mm (99 1/2")

Width Between Columns

E

2850mm (112 7/32")

Minimum Pad Height

F

89mm (3 1/2")

Gross Weight



695kg (1,369 lbs)

Motor



3.0HP

QTY of Container



25 Units/20'GP
50 Units/40'GP

Packing Dimension



2800 X 450 X 825 mm



Peak Warranty conditions from 01-06-2022

  • Steel structure components including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Base frame etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for TWO YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for TWO YEARS.
  • 4 Post parking lifts warranty as above when installed as a home workshop or parking lift. Not in commercial workshop use environment.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
