PRODUCTS - Two Post Hoists

AM-6140E- Automaster Two Post Hoist

This hoist is now supplied in dark blue / yellow colour combination.

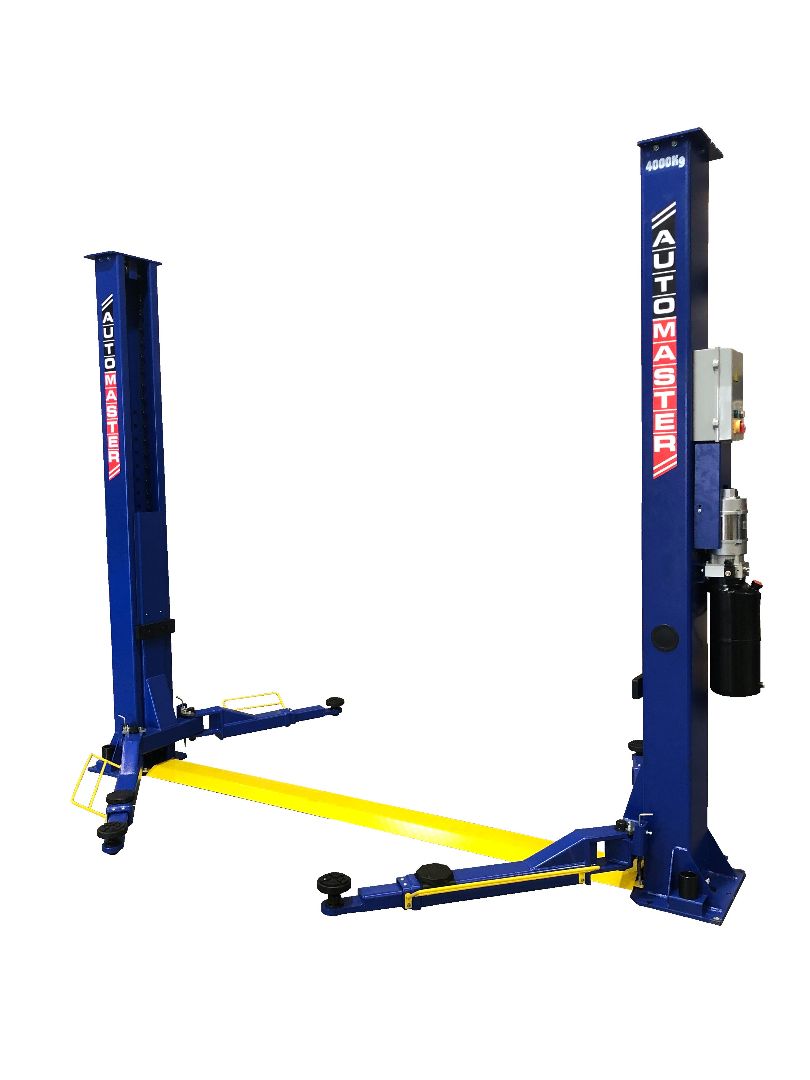

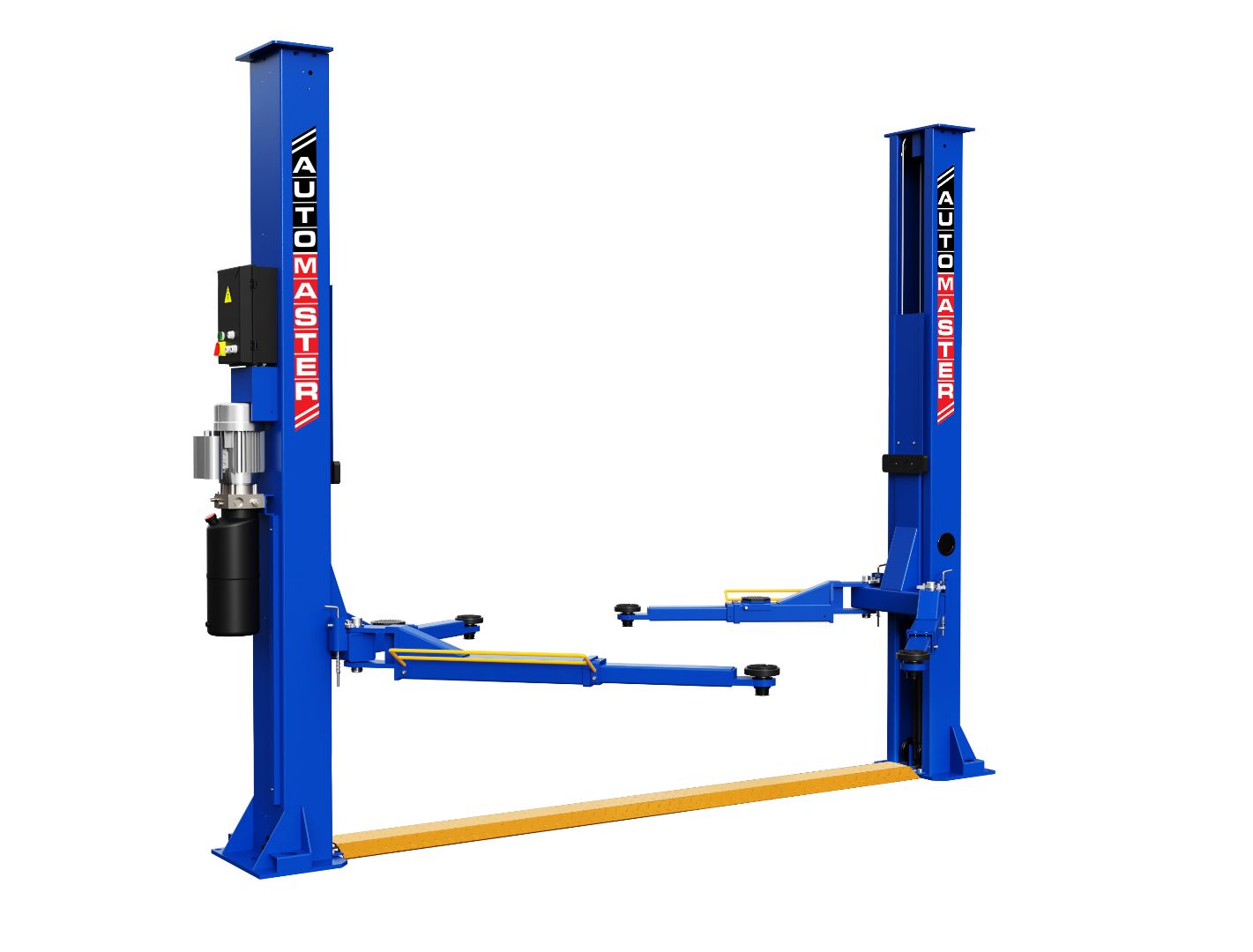

The Automaster AM-6140E Is a base plate commercial grade two post lift.

The open top design is perfect for servicing of high roof vehicles and vans with roof mounted ladder racks.

This lift is also a great option for workshops with low roof height that can not fit a clearfloor lift.

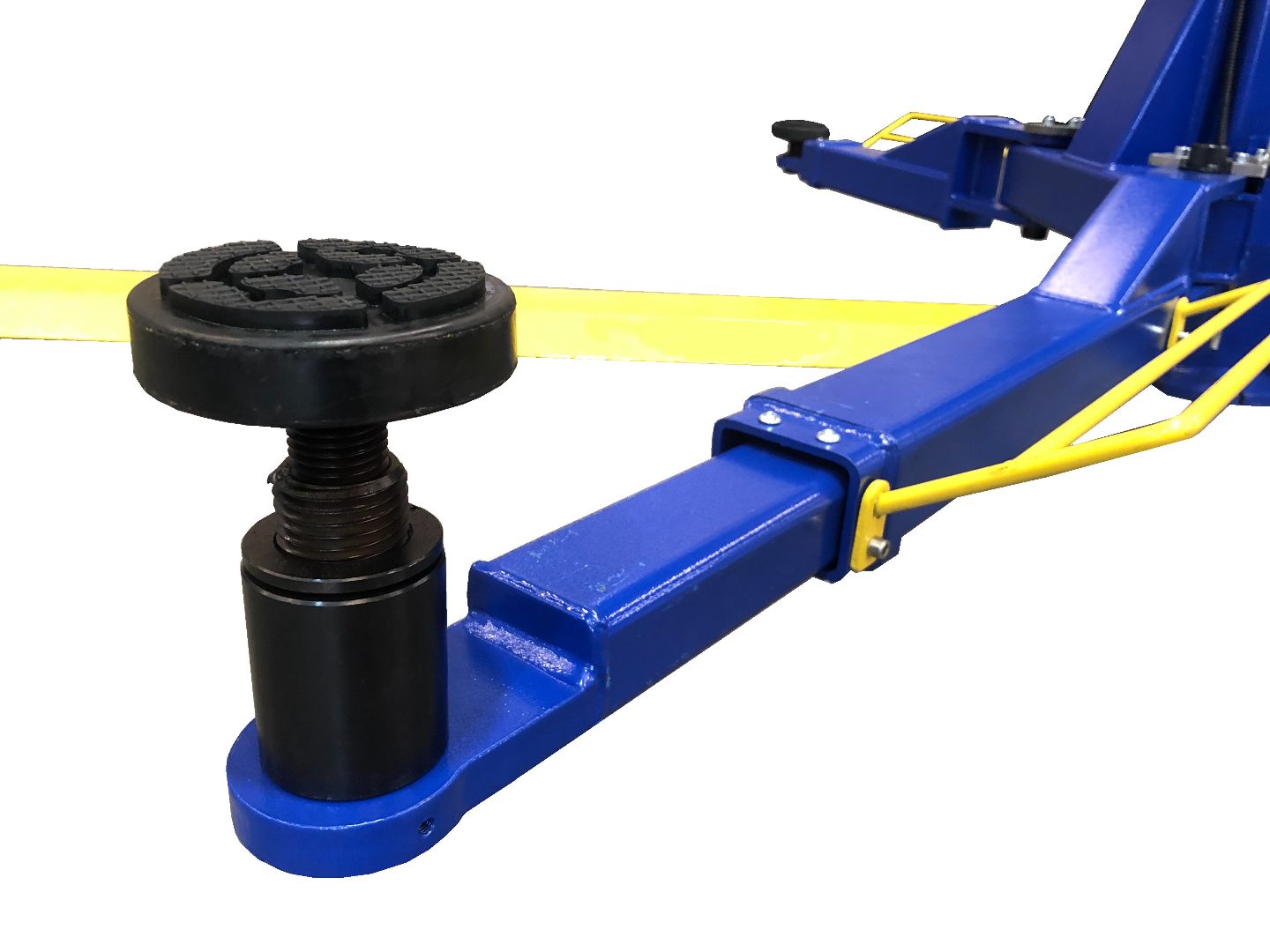

Featuring automatically activated electric locking system, telescoping front arms and rear rears arms, double screw up feet with 80mm 4x4 height extensions, protective rubber pads mounted to the carriage, tool trays this lift truly represents the incredible value for money .

The concreate minimum thickness is150mm or 100mm with optional base plate extensions.

Operation is a simple single button to go up and lock button to rest the lift onto the locks. Press down button to unlock and lower the lift.

Using only the very best quality components like balance cables, oil pumps, cylinders & electric motors (plus all other components) this lift will provide reliable, durable performance even in the most demanding environments.

Automaster lifts deliver years of dependability because they are built using only the highest quality component parts.
Automaster Equipment stocks a complete inventory of parts for the equipment we sell

WARRANTY = 3 YEARS

  • AM-6140E Hoist Electric lock model - Press down button to lower vehicle.
  • With Maximum capacity of 4000kg, suitable for repair, maintenance or cleaning of light van, light bus and car.
  • Easy to operate, press button to raise the vehicle to desired height and a safety locking system that works automatically when released.
  • Wire ropes balance the hoist and work as a extra safety in case of hydraulic failure.
  • Durable powder coated finish.

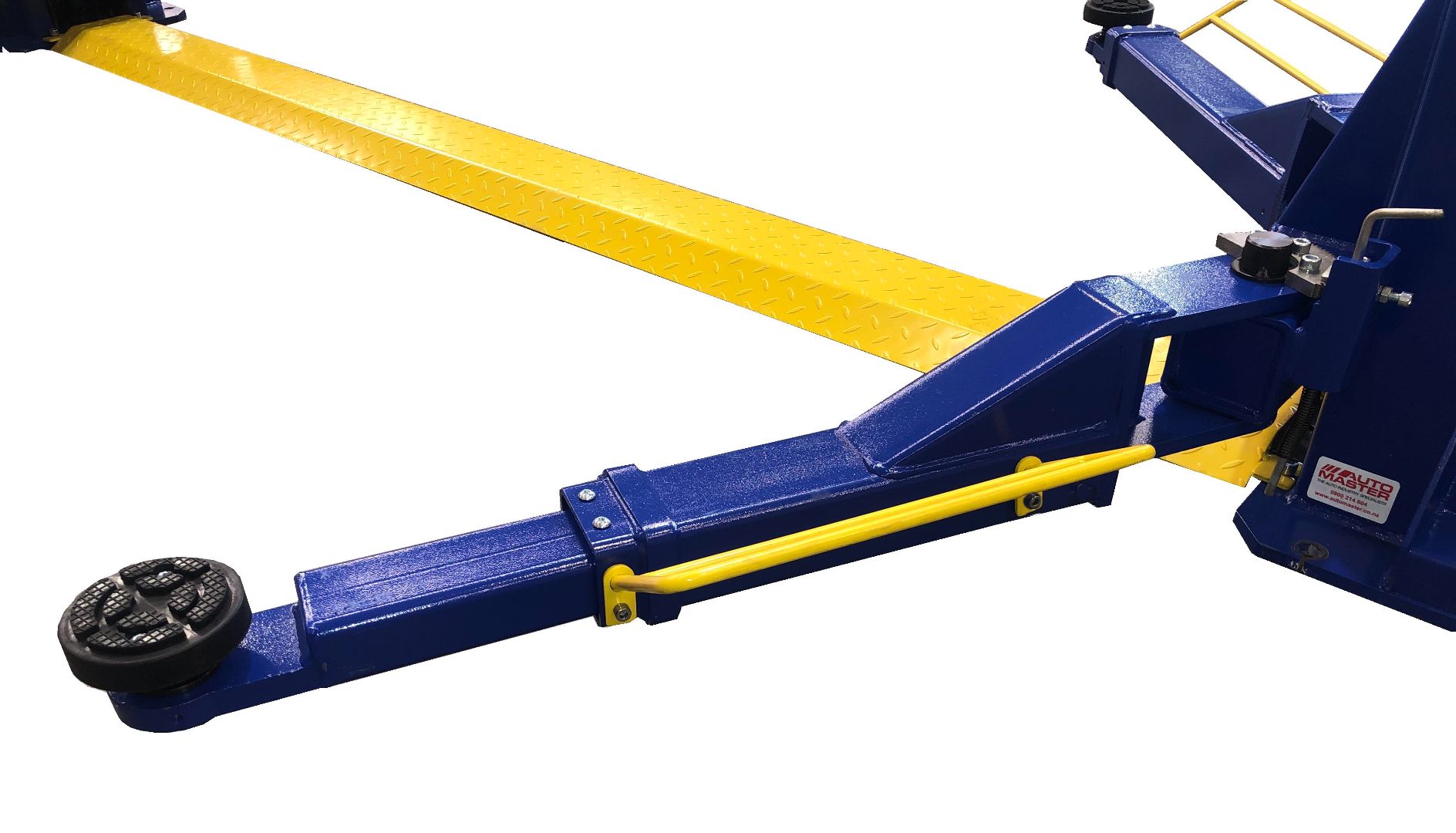

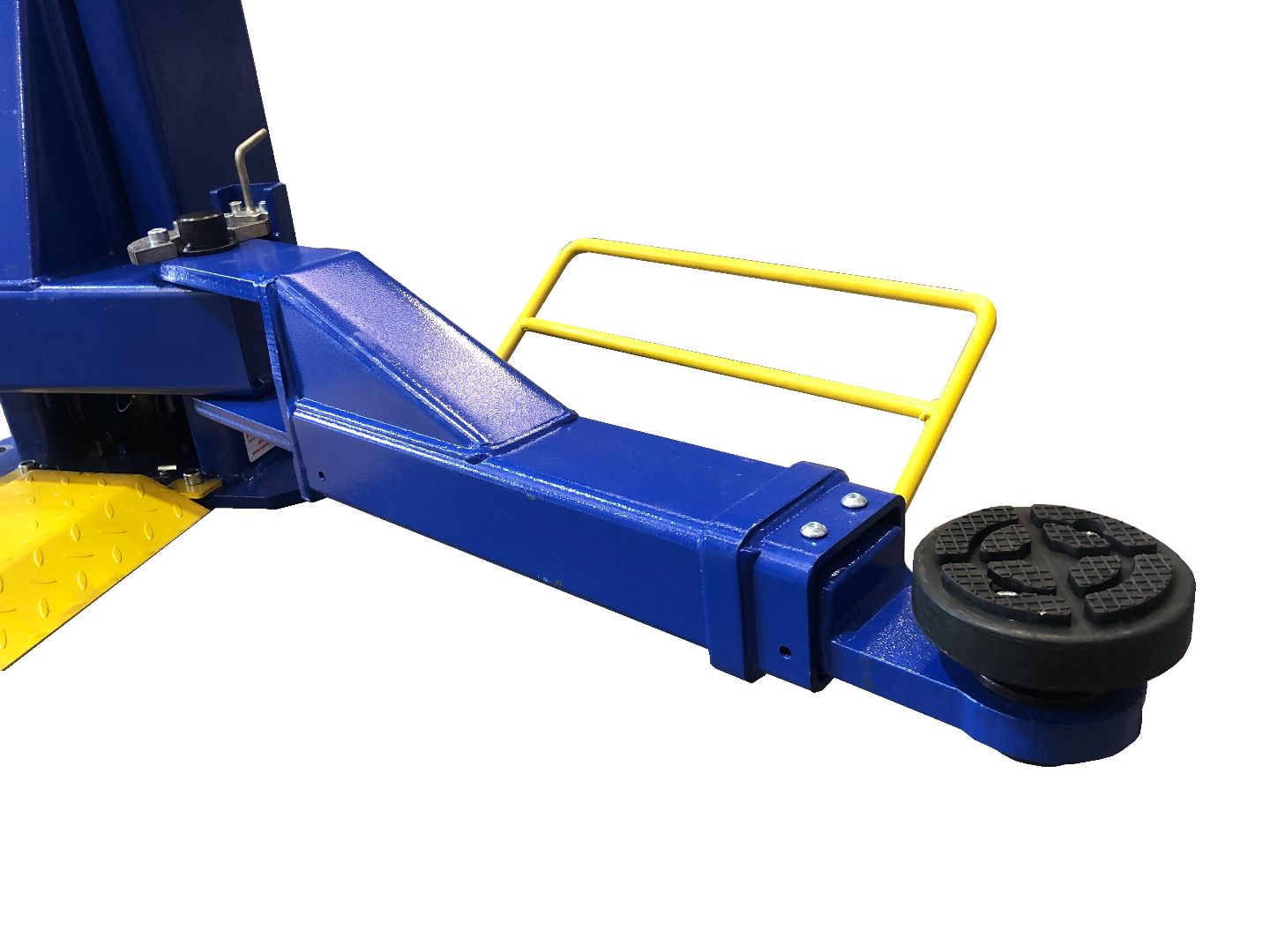

  • Asymmetric arm configuration for easy door opening and even weight loading.
  • Dual Hydraulic cylinders lift and lower vehicle
  • Step by step installation and operation manual goes with each hoist.
  • 3 Year Warranty
  • Italian seals and solenoids. The electric motors are the very best China has to offer with proven reliably
  • Delivery and installation not included in advertised price of hoists

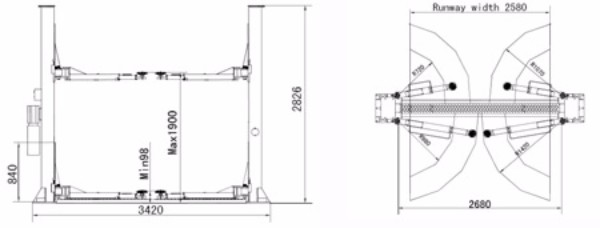

Lifting capacity 4000kg
Lifting height 1900mm
Min. height 98mm
Lifting time 40S
Voltage 230/380V
Power 2.2KW
Weight 650kg



AM-6140E  Warranty conditions from 01-06-2022

  • Warranty covers manufacturing defects & faulty components
  • Steel structure components including Columns, Carriage, Lifting Arms, Cross Beam etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for THREE YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for THREE YEARS.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
