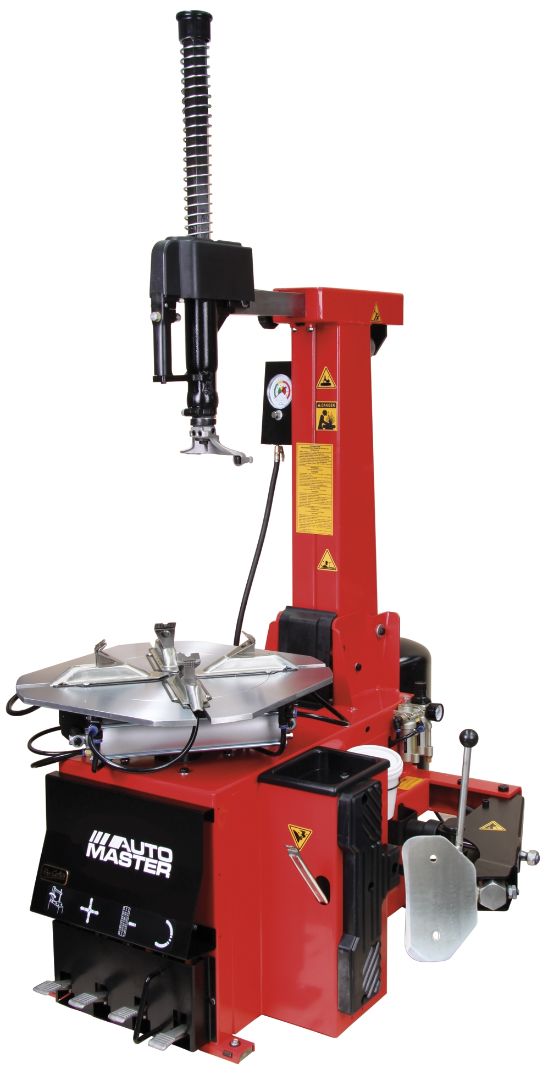

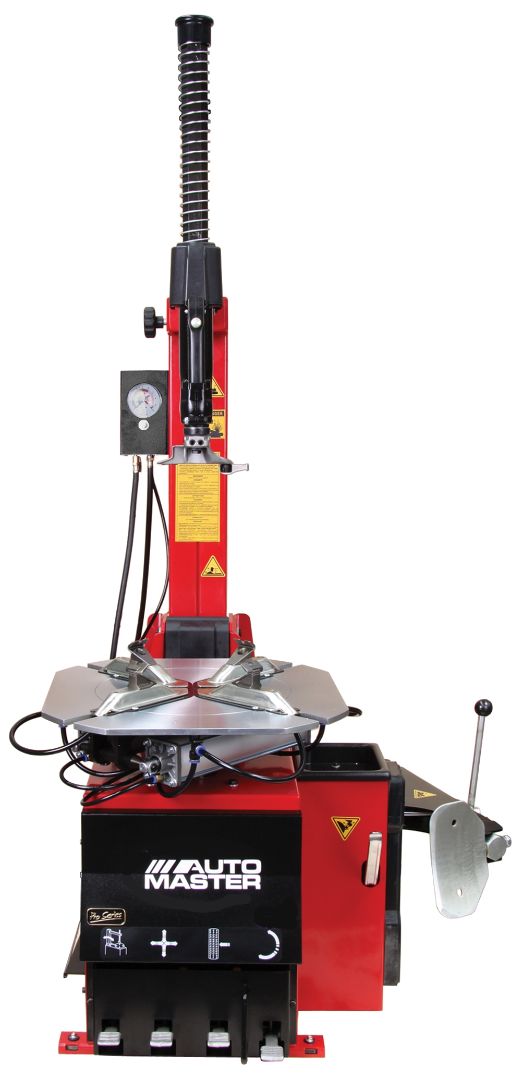

AM-203IT Automaster Pro Series Tyre Changer

Note: Some photos show optional HP1 Helper arm.

The Automaster AM-203IT Pro Series Heavy duty tyre changer is our most popular in the Automaster line up.

It has a pneumatically controlled tilt back post and is the perfect changer for busy workshops or tyre shops.


Supplied standard with a pedal controlled inflation gauge and tubeless air blaster system.

Designed to change the tyres on both high priced alloy wheels and steel wheels without damaging the rim or the tyre.

The powerful bead breaker is designed to break even the most stubborn and rusted beads without damage.

The turntable jaws (which can be covered with plastic protection covers for reverse fit alloy rims ) hold the rim securely without damaging the surface of the rim.

These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range.

Supplied standard with an inflation gauge, plastic jaw covers, head inserts, tyre lever, lube brush and bead lube.

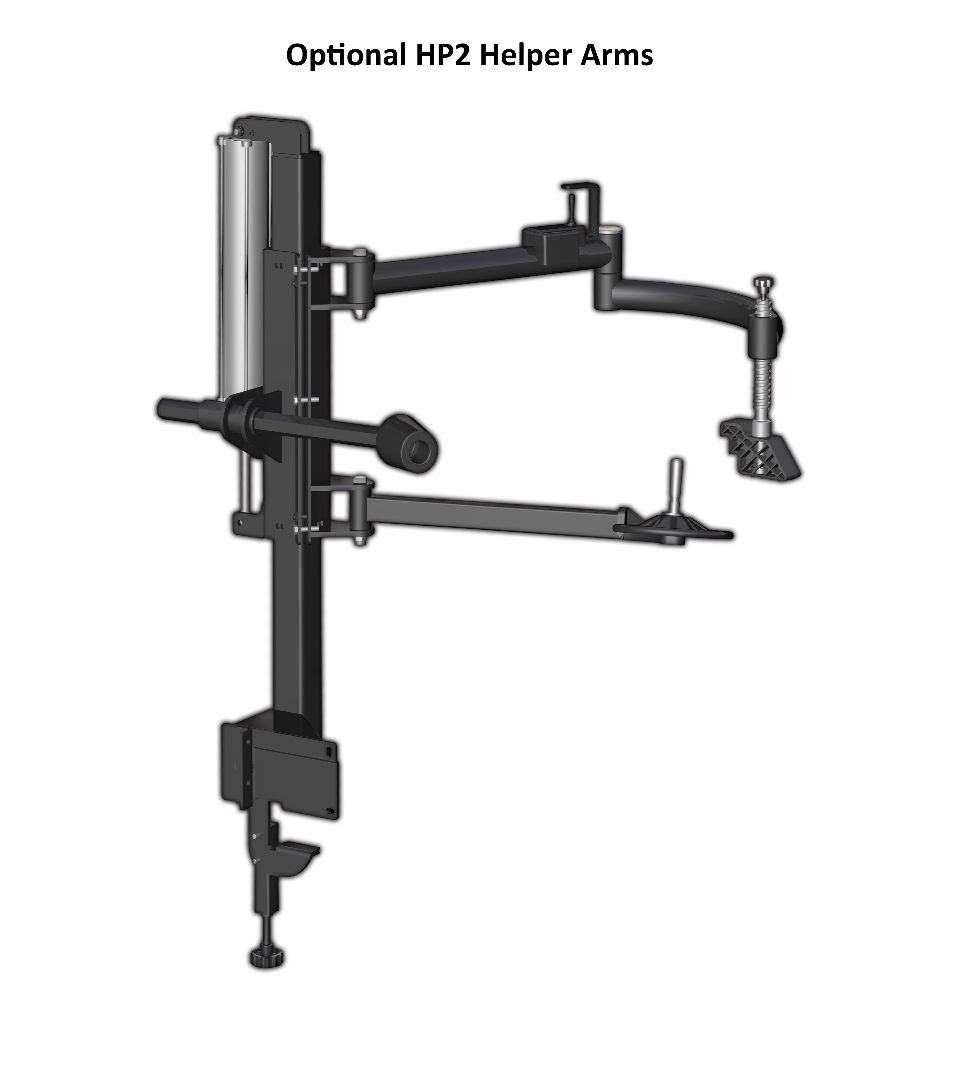

You can also add the HP1 low profile helper arms, or twin helper arms to make changing difficult tyres easy, and help reduce the risk of damage caused by tyre levers.



Automaster Tyre machines deliver years of dependability because they are built using only the highest quality component parts.


Automaster Equipment stocks a complete inventory of parts for the equipment we sell

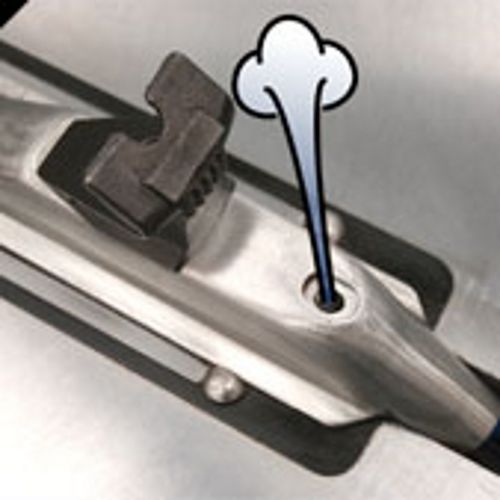

  • Tubeless air blast inflation system with air accumulation tank. Pedal controlled.
  • Pedal controlled inflation gauge with deflation button
  • Pneumatic tilting post
  • Pneumatic locking mechanism automatically gives vertical and horizontal clearance from the rim to avoid scratches on the face of the wheel - an essential feature when dealing with alloy wheels.
  • 2 Speed Turntable with 3 phase option
  • Powerful bead breaker with a rust free stainless steel clyinder

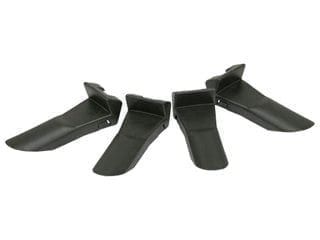

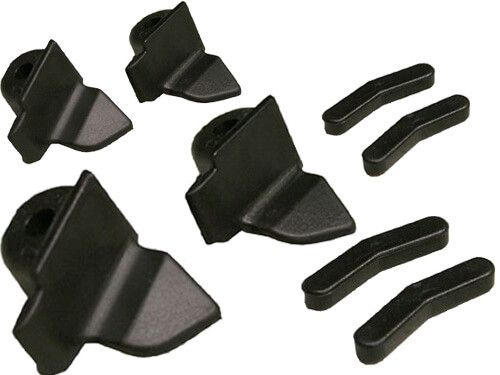

  • Includes plastic jaw protectors and mounting head inserts

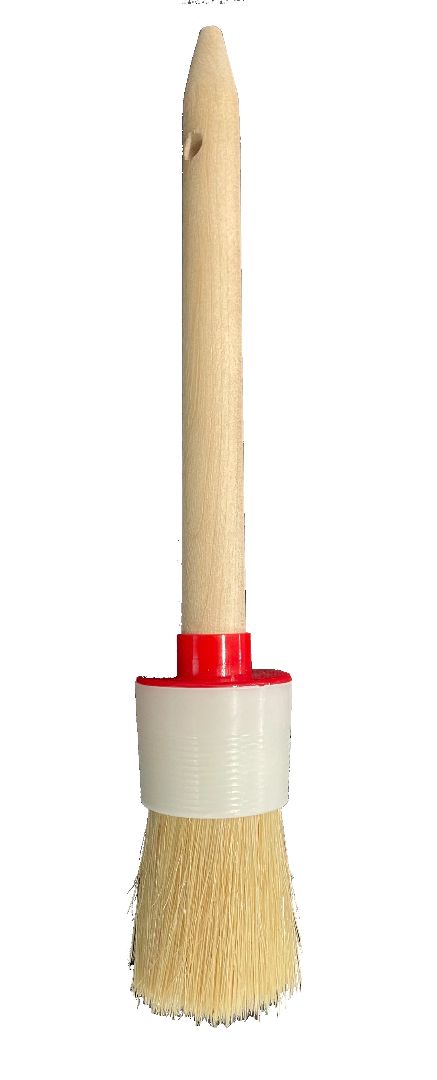

  • Includes lube brush, container & HD tyre lever
  • Can be fitted with low profile help arms
  • Optional ATV or M/C adapters
  • 2 Year Warranty
Outside Wheel Clamping 10"- 22"
Inside wheel Clamping 12" - 24"
Maximum Tyre Diameter 39"
Rim width 3"-14"
Operating Pressure 90psi
Weight 295kg
Bead Breaking Force 3000kg
Drive Motor 230v/1ph or 380V 3ph 2 Speed
Turn Table Torque 1200nm
