FEATURE
With 5 different rim locking positions;
Automatic movement of chuck arm;
Automatic movement of carriage;
Automatic chuck arm tilting outside the van-door or folding back
inside the van after use;
Emergency safety button on control console for stopping all
functions;
As standard, mounting tool and roller for tubeless tyre included
| Rim diameter |
13"-26" |
| Maximum wheel diameter |
1300mm |
| Maximum wheel width |
600mm |
| Hydraulic Pump Motor |
380V-400V/3PH 1.1kw |
| Gearbox Motor |
380V-400V/3PH 1.5kw |
| Net weight |
450kg |
| Max Wheel Weight |
750kg
|

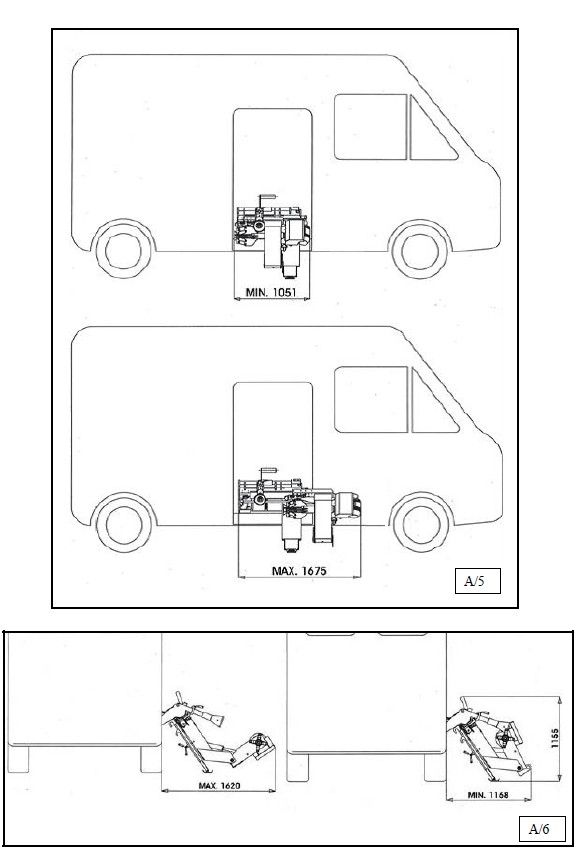

| Width |
1050-1650mm |
| Length |
1168-1620mm |
| Height |
1155mm |
