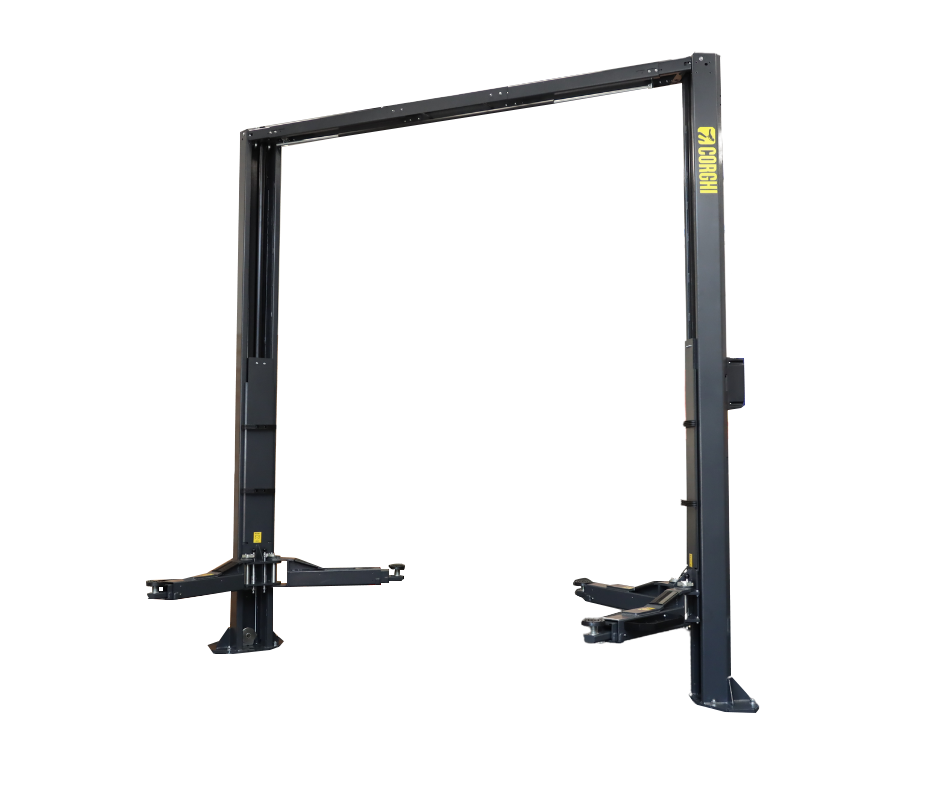

HC4502 Corghi Two Post Car Hoist

Introducing the NEW Corghi ERCO HC4502 4500KG two post car lift.

Standard colour Grey RAL 7016

The HC4502 with better design and functionality in order to create a longer-lasting, safer and more productive lift.

Includes the option to install asymmetrically for better door opening, or symmetrically for better drive through clearance.

Industry leading 1980mm lifting height allows for tall technicians to stand comfortably under the vehicle and 3000-3200mm clearance between the posts (Width is adjustable by 200mm )

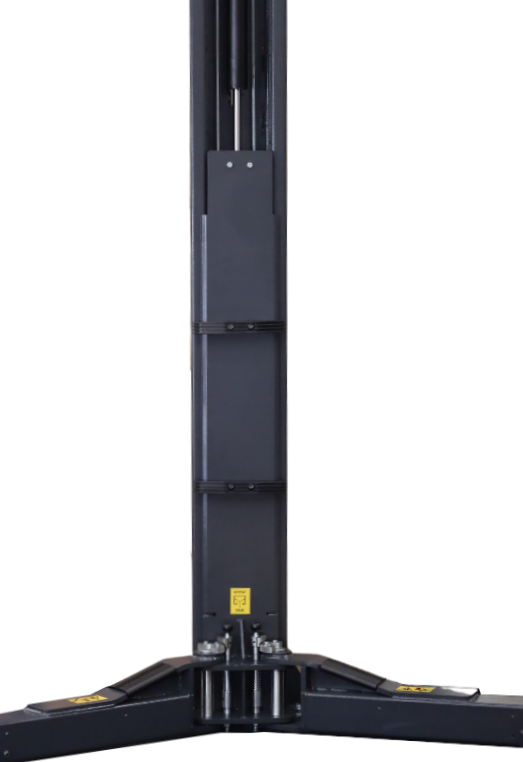

The main columns are made from one piece of full length steel, with an 8 fold bending structure & internally built in reinforcement to provide maximum rigidity and strength.

The large base plate (650mmx350mm) is made from 20mm thick steel, has four supporting brackets welded to the base of the column & is secured to the floor by 8 true bolts.

Nylon carriage slider blocks are made from wear resistant & maintenance free material for long life and low service cost.

For added safety the lifts carriages are 1800mm long to provide extra stability and load distribution over a larger area of the column.

On each carriage there are two rubber protector pads to prevent damage to opening car doors.

A parachute valve is installed in each cylinder for added safety encase of hydraulic failure, to control fluid flow and decent speed.

The adjustable width cross beam allows for narrow or wide installation options. .

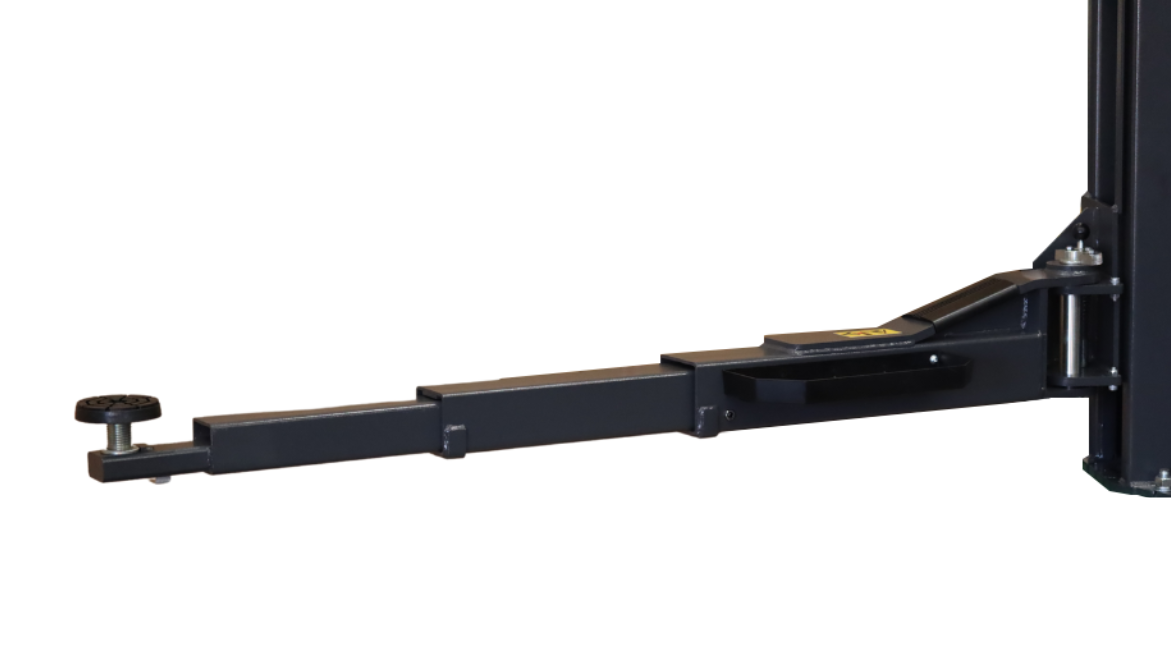

The four three stage arms are made from 8mm thick steel and fitted with long life durable rubber lifting pads.

At full extension the arms provide 1750mm of reach to allow safe lifting of small cars, American classic cars with narrow chassis, or extra-large commercial vehicles .

The standard height of 4,050mm to the top cross bar allows for most cars and 4x4 vehicles to be lifted to full height, and optional 600mm or 1200mm extensions available for extra large high roof vans.

This lift was designed by industry leading Italian and Danish engineers.

1980mm lifting height,3000-3200mm clearance between the posts



  • Options of installation in symmetrical or asymmetric version.
  • 3000-3200mm clearance inbetween posts (Width is adjustable by 200mm )
  • Standard height of two-post connection: 4,050 mm
  • Solid 1pce post
  • Safety over height shut off bar
  • 4 three-stage symmetric arms

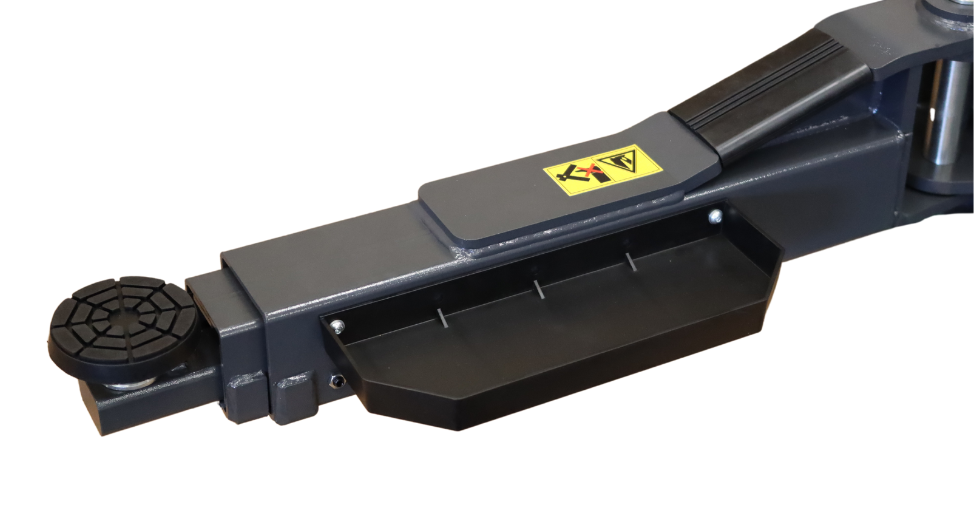

  • Tool trays on each arm
  • 80mm & 180mm 4x4 extenstions included
  • Internally reinforced column structure

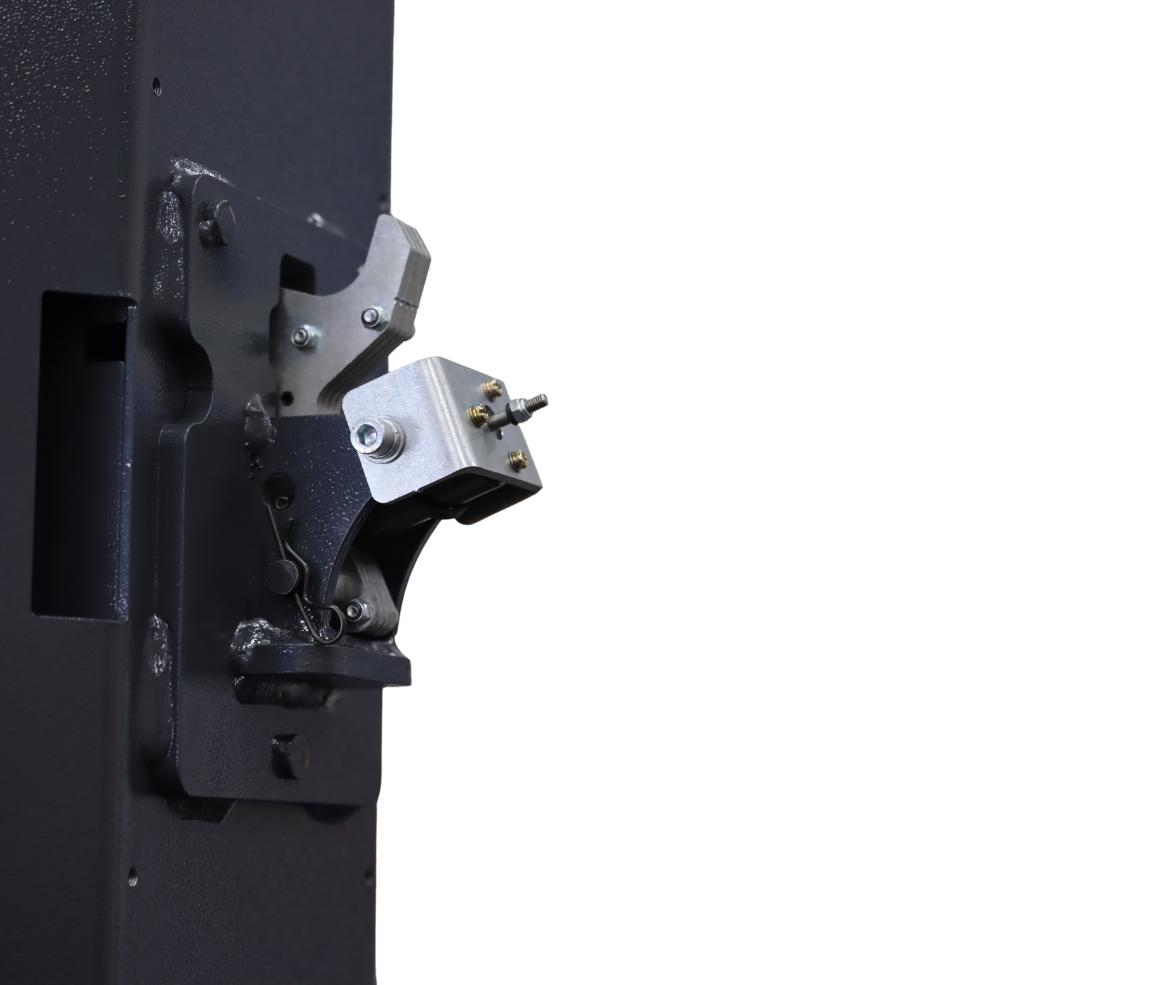

  • Electro magnet safety release 24V
  • Automatic arm locks
  • Rubber door protections
  • Extra long 1800mm long carriage
  • Optional 600mm or 1200 mm column extension kit
  •
  • Lift capacity         4500 kg
  • Lifting time           45 s
  • Three phase motor 400/230V - 3kW 3Ph - 50/60Hz
  • Max. lifting height      2080 mm
  • Max lock height 1957- 2037mm
  • Lift foot minimum height     100 mm
  • Height top cross beam connection 4050mm
  • Base Plate thickness 20mm
  • Max arm length 1750mm
  • Min arm length 900mm
  • 3000mm - 3200mm inside clearance between posts
  • 2780-2980mm drive through clearance (Width is adjustable by 200mm )
  • Total weight 1150kg
  • Package size for shipment 3996x1091x671
  • Steel structure components including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Base frame etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for THREE YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for THREE YEARS.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland)
