PRODUCTS - Four Post Hoists

Powerrex SL-3600A Four Post Alignment Lift

Normally available in stock in Red or Blue or Black colour options

The SL-3600A 4500kg Powerrex Korea lift is 100% Made in Korea.

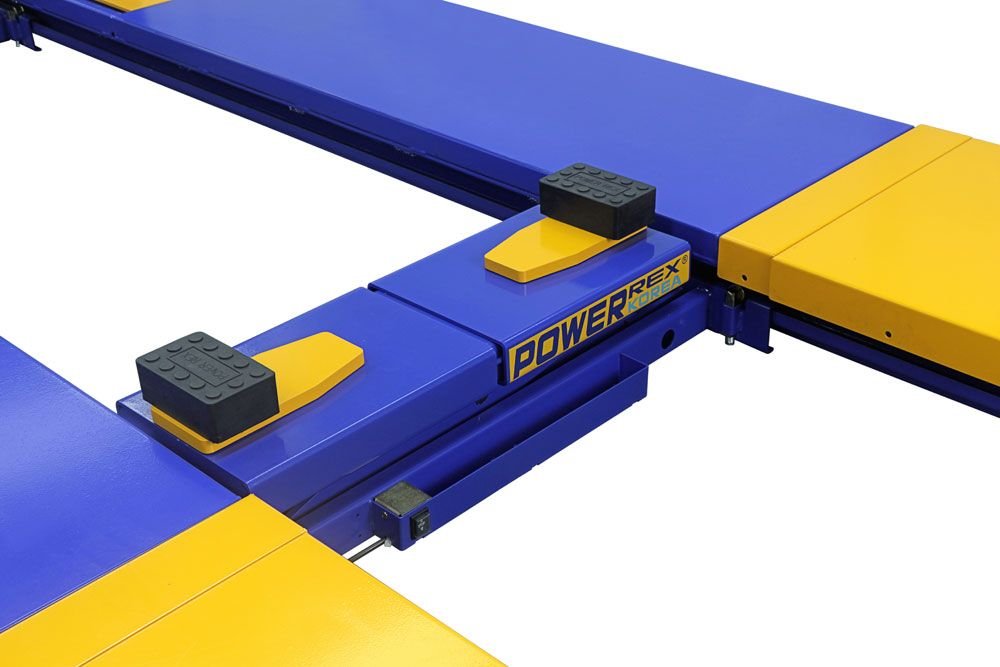

SL-3600A is a premium quality four post wheel alignment lift supplied with two centre jacking beams as standard to give a wheel free operation for when you need to replace all four tyres or carry out a tyre rotation.

Featuring a 3 button control panel for up, lock and down and a 6 button remote control with up and down control for the lift and each jacking beam.

Each jacking beam also has electrical switches on each side to operate them while in place under the car.

As the jacking beams are powered by the main hydraulic pump of the lift there is no need to run pneumatic air lines to the jacking beams.

NEW - This lift is fitted with multi front removable turn plates to be able to use the full length of the run ways (not shown in photos) and multi-directional lockable rear slip plates on to the 4600mm long runways.

The lift platform has a low profile of only 235mm from the ground and is fitted with 1200mm long drive on ramps.

This means the lift can handle low riding cars as well as light commercial vehicles.

The double lock safety system is automatically activated as the lift is raised and includes a cable brakeage emergency locking system should there be failure.

These locks are electrically operated by simply pushing a button on the control panel to unlock and lower the lift, and no pneumatic supply is required.

The adjustable locking ladders in each post enable simple levelling of the lift and ensure all 4 corners of the lift are locked and level.

Operation is a simple single button to go up and lock button to rest the lift onto the locks. Lower button raises the lift off the locks and lowers the lift.

Powerrex Korea:

Premium quality, feature rich, genuine Korean manufactured Powerrex lifts. Powerrex Korea does all it’s manufacturing in their Korean plant so they can completely control all aspects of production from the steel manufacturing, to the powder coating lines ensuring top quality lifts are consistently delivered to their dealers.

Automaster Equipment stocks a complete inventory of parts for the equipment we sell

CE & AUS/NZ Safety regulation

Delivery & installation is not included in list pricing

Delivery & install is not included

  • Normally available in stock in Red or Blue or Black colour options
  • 2 x 2000 kg Electro -Hydraulic Jacking beams included controlled by switchs or remote
  • Adjustable Front flush mount turn table recesses.
  • Full prolonged floating rear slip boards
  • Electric locking system locks in all four posts of the hoist
  • Lifting height limitation control standard
  • 575mm Wide and 4600mm long runways to accommodate small and large vehicles
  • 4500kg max lift weight
  • Delivery and installation not included

  • Premium quality lifts 100% manufactured in Korea

  • Approved to the Australian/NZ standard.

Column Height 2160mm
Width between columns 2734mm
Total Length 6075 incl ramps
Total width 3370mm incl motor
Ramp length 1200mm
Lifting capacity 4500kg
Runway length 4600mm
Runway width 575mm
Voltage 220v or 380V
Power 2.2KW
Weight 1880kg
Lifting time (Approx) 45-55S
Min. height 235mm



Powerrex 4 Post Warranty

  • Steel structure components warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for TWO YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for TWO YEARS.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
