P-209X Peak 2 Post Base Plate Car Hoist

WIDER & STRONGER BASE PLATE STYLE LIFT

Now available in Dark Grey

PEAK introduces a revolutionary double lock system installed in both columns.

Automatically activated double safety locks built into each column, released by one release lever make the Peak 209X floor plate lift one of the safest and easiest to operate floor plate lift in the industry.

This new lock system incorporates two locking mechanisms for added safety. The double lock system is automatically activated as the lift is raised.

With the single sided lock release there is no need for the operator to go to the other side of the lift and manually unlock both column locks, (as seen in most low cost lifts), and this complies with our local regulations.

All lifting and lowering operations are controlled from one column.

Available in single phase or three phase power supply

Automaster Equipment stock a complete inventory of parts for the equipment we sell.

This lift only needs 100mm of Reinforced concrete

FULLY CE (EUROPEAN) SAFETY CERTIFIED,

LOW COST COMMERICAL GRADE

Enquire Now
Click to show all 14 images
  • 4000kg (9,000 lbs) capacity;
  • Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;

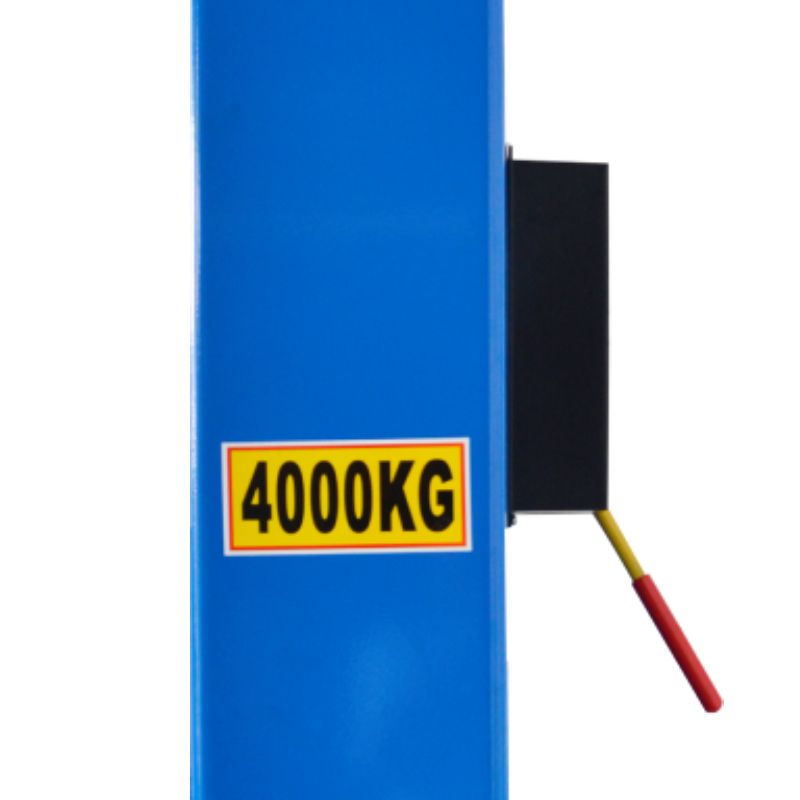

  • Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
  • Four 3-stage arms are suitable for more vehicle;
  • Revolutionary patented double-lock system is equipped in both columns;
  • Enhanced structure and extended arms accommodate a wider variety of vehicles;

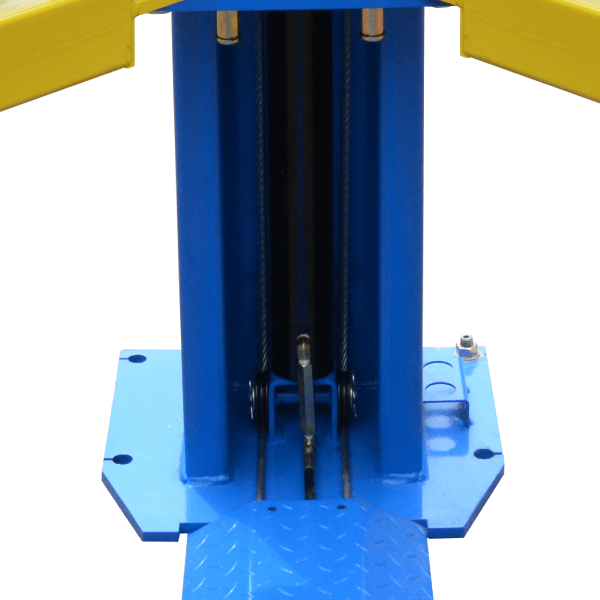

  • Aero cables are used for synchronization;
  • Self-lubricating UHMW polyethylene sliders and bronze bush;
  • Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
  • Double-screw rubber pad with pin dia 50mm, comes with 3″ extension adapter;
  • Automatic arms restraints;
  • Toe guards and tool trays come as standard.
  • European CE Safety Certified
Lifting Capacity
4000kg (9,000 lbs)
Lifting Time
49s
Max. Lifting height: (w/o extension adapter)
1939mm (76 5/16" )~1987mm(78 1/4")
Max. Lifting height: (w/ extension adapter)
2015mm (79 5/16" )~2063mm(81 1/4")
Max. lock height: (w/o extension adapter)
1899mm (74 3/4" )~1947mm(76 5/8")
Max. lock height: (w/ extension adapter)
1975mm (77 3/4" )~2023mm(79 5/8")
Overall Height
2841m (111 7/8")
Overall Width
3460mm (136 1/4")
Drive-Thru Clearance
2560mm (100 3/4")
Width Between Columns
2850mm (112 1/4")
Minimum Pad Height
89mm (3 1/2")
Gross Weight
717kg (1,581 lbs)
Motor
3.0HP
QTY of Container
20 Units/20'GP 40 Units/40'GP
Packing Dimension
2900 X 510 X 790 mm

Peak Warranty conditions from 01-06-2022

  • Steel structure components including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Base frame etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for TWO YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for TWO YEARS.
  • 4 Post parking lifts warranty as above when installed as a home workshop or parking lift. Not in commercial workshop use environment.

We ship all heavy equipment by freight truck and most accessories/spare parts by courier.

Most lifts are delivered on a curtain-sider truck (which may require a forklift to unload), while most tyre changers and balancers are delivered on a tail-lifter truck.

If you don’t have one, we can arrange a HIAB delivery for an additional cost.

We can also arrange installation on request.

Estimated delivery times:

  • Auckland: 1–2 days

  • Rest of North Island: 2–3 days

  • South Island: 4–5 days (ex AKL) / 1–2 days (ex CHC)

For special delivery requirements, just contact us.
