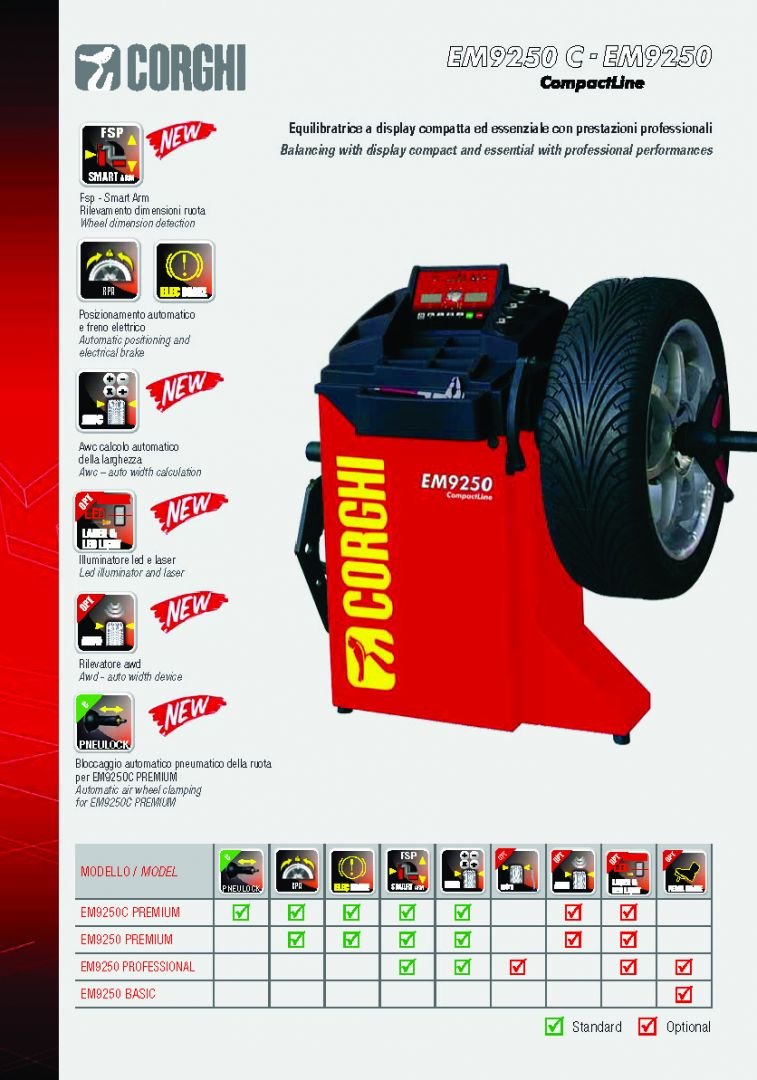

Corghi EM9250 PREMIUM Xline

  • Corghi – The worlds most trusted and proven name in tyre changing equipment
  • 100% made in Italy
  • EM 9250 PREMIUM: Xline Full Kit Version with manual wheel clamping system,automatic input of wheel diameter,  distance & width sonar. LED and Laserline for stick on weight placement at 6O’clock
  • Electrical clamping brake and auto positioning
  • A double display (A) control panel enables a quick and intuitive selection of the balancing mode and immediate access to the most common operating functions.
  • Smart Arm  Electronic input of wheel diameter and distance with FSP function which automatically activates the balancing programmes, avoiding keypad selection. Three modes to position the adhesive weights: with the weight holder clip, with the 6 o’clock laser indicator or manually at 12 o’clock.
  • AWD automatic sensor (Auto width Device) for contactless measurement of wheel with sonar
  • Automatic wheel positioning in the point where the balancing weight has to be applied (RPA) and electrical positioning brake.
  • LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights.
  • The adhesive weights can be positioned extremely rapidly using the laser pointer at 6 o’clock
  • It keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes.
Enquire Now
Click to show all 19 images

Product Videos

  • Laser line for application of stick on weight
  • Inside wheel LED light
  • Auto width measurment sonar
  • Electronic brake – Auto Stop and lock in position
  • Auto data entry for offset, width & diameter
  • Static , Dynamic and 7 ALU programs + ALU Programs – OPT & Hidden
  • mm/inch selectable
  • Compact design
  • Back or front mounting
  • 40mm shaft
  • User friendly operation
  • Optional oversized cone and spacer
  • Electronic sensor and positioning of adhesive weights at 3, 6 and 12 o’clock selectable by the user.
Rim diameter
1"-35"
Rim width
1.5"- 20"
Maximum wheel weight
75kg
Balancing speed
90-130 rpm
Accuracy
1gm +/-
Average Spin Time
7 Sec
Power supply
230v/1ph
