AM-356 Automaster Super Heavy Duty Tyre Changer

Automaster Equipment Logo

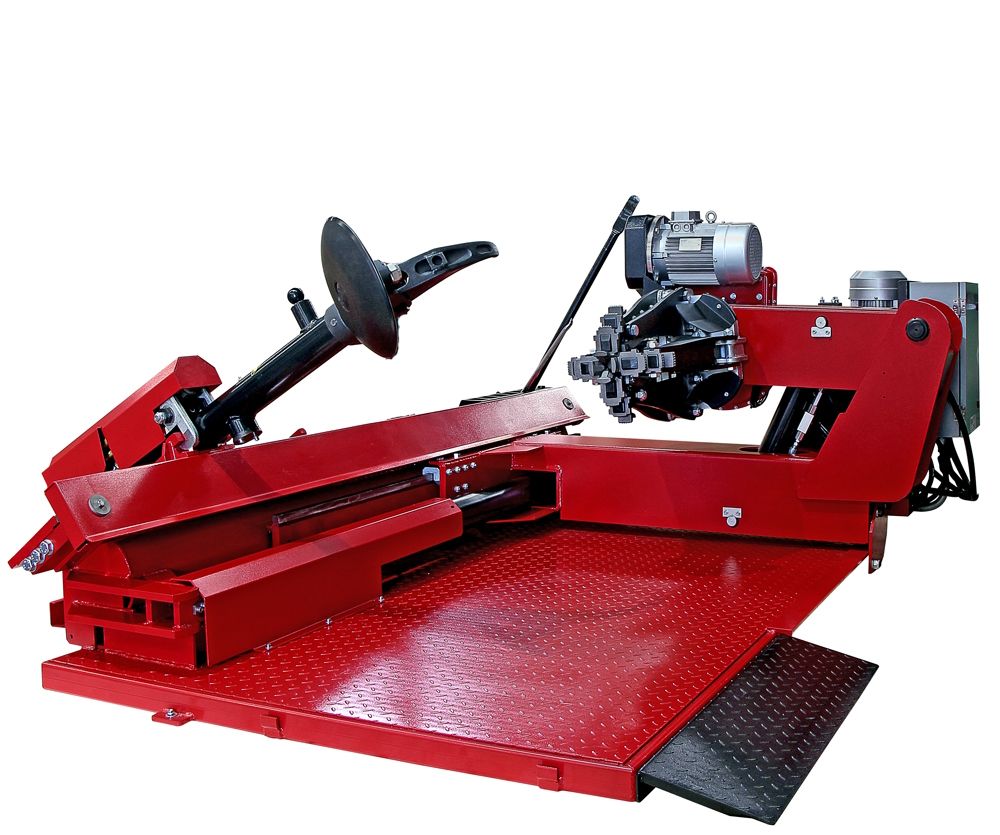

Automaster AM-356 Automatic Super Heavy Duty universal commercial tyre changer.

Features a remote controlled rotating bead breaker disc and mount/demount head that can be actuated from the remote console.

Optional wireless remote control available

This machine is designed and engineered to handle rim sizes from 14″-47″ (56″ with optional kit) inches and tyre diameters in excess of over 2600mm.

Automaster AM-356 Truck Tyre Changer can easily accommodate tyres with a maximum width of up to 1500mm and a max wheel weight of 1700kg.

This truck tyre changer is designed for truck tyre shops that demand dependability and durability in their equipment.

The AM-356 handles off-road tyres, agricultural tyres, super singles, tractor and skidder and earth mover tyres and is the perfect choice for the commercial tyre centre that does a wide variety of tyres.

Perfect machine to cover everything from standard road wheel assemblies, with the added power and size capabilities to change agricultural and off road wheel assemblies too.

The AM-356 has all the power you will need with twin motors, one to drive the rotation and the other to drive the hydraulic pump.

This machine has powerful bead breaking force of 3500kg.

Automaster Tyre machines deliver years of dependability because they are built using only the highest quality component parts.

Automaster Equipment stocks a complete inventory of parts for the equipment we sell.

Enquire Now
Click to show all 14 images
  • 2 Year warranty
  • Fully-automatic universal truck, earth-moving, agriculture and industrial tyre changer

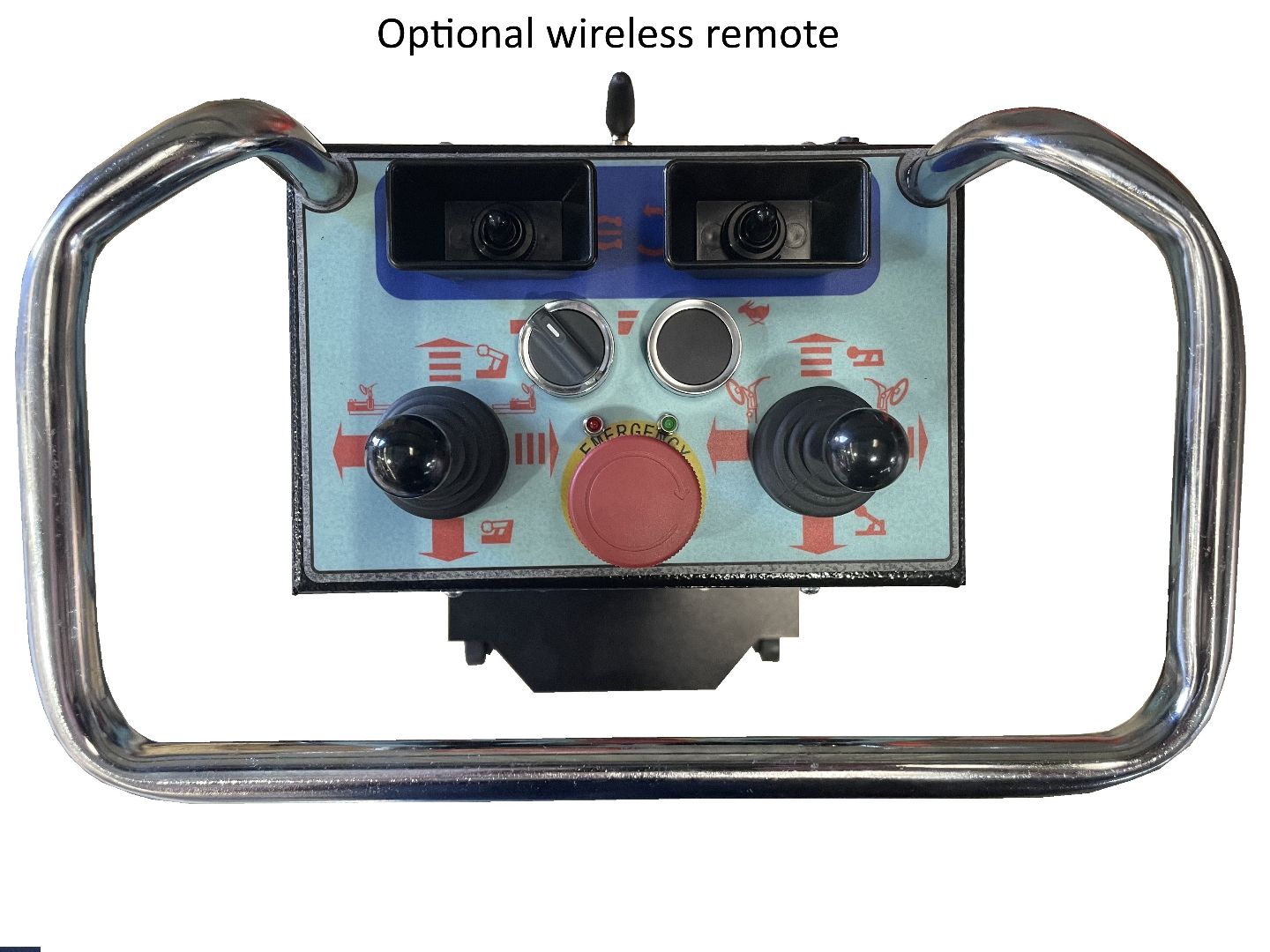

  • Optional wireless Mobile  control remote.

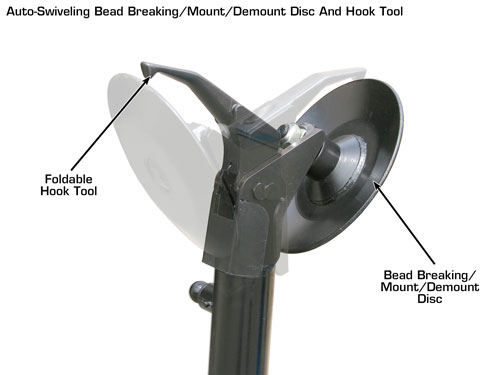

  • Remote operated tool arm saves operator effort and speeds tyre-changing with automatic tilting, plus mounting head/ bead breaker disc can be turned over and swapped from right to left from the remote.
  • For tubeless and tube type tyres
  • Time saving two speed chuck operation
  • Solid, single-piece frame for added capacity and dependability
  • Powerful Bead Breaker
  • Optional Wireless Control Console
  • Automatic tool arm positioning
Rim diameter
14"-47" (58" with optional kit)
Maximum wheel diameter
2600mm
Maximum wheel width
1500mm
Hydraulic Pump Motor
4.0kw 380V-3Ph
Gearbox Motor
2.6/3.2kw 380V-3Ph 2 speed
Operating Pressure (max)
30 bars
Max Wheel Weight
1700kg
Bead Breaking force
3500kg
Gross Weight
1600kg

We ship all heavy equipment by freight truck and most accessories/spare parts by courier.

Most lifts are delivered on a curtain-sider truck (which may require a forklift to unload), while most tyre changers and balancers are delivered on a tail-lifter truck.

If you don’t have one, we can arrange a HIAB delivery for an additional cost.

We can also arrange installation on request.

Estimated delivery times:

  • Auckland: 1–2 days

  • Rest of North Island: 2–3 days

  • South Island: 4–5 days (ex AKL) / 1–2 days (ex CHC)

For special delivery requirements, just contact us.
