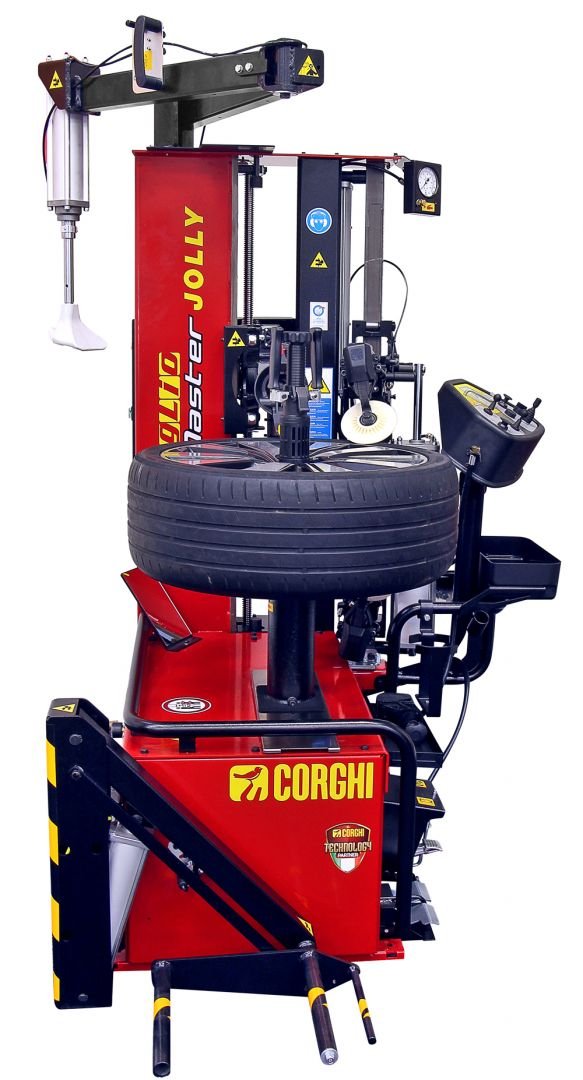

Corghi Artiglio Master Jolly

Artiglio Master Jolly has this technology at its core and offers it in a price range that has been impossible until now. A perfect synthesis between tested constructive quality, unique technological solutions and a competitive price represents the ideal machine and a perfect balance for an investment that since 2001 has guaranteed our customers a technological advantage that has remained unmatched over time.

 “Leva la leva” system with the “SMART Corghi System” device, the only existing solution that:

NEVER TOUCHES THE RIM, during any working phase, thanks to the fixed distance between the tool and the rim.

Annuls all tension on the tyre during the tyre demounting/mounting phases, thanks to the synchronised movement between the tool and the rim.

This is the difference between Corghi and the others.
Automatic tyre changer with “Leva la leva” (Without lever) technology, the only without contact with the rim.

Ergonomic and multifunctional consoles with a display that makes it possible to electronically set the rim diameter and obtain the positioning of the work tools in a quick, practical and safe manner. Divided into three distinct work areas, it makes it easier to immediately recognize movements and makes the system easier to use for the operator.

Dynamic bead breaking device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator. • Controlled penetration (Patent Pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.

Rapid demounting procedure with bead breaker disc (particularly useful with stiff sidewalls)

A wheel lifter for effortlessly placing wheels of any type onto the turntable

masterj approvals.JPG

Wheel Clamping 12" - 26"
Rotation Speed 7-18 rpm
Maximum tyre width 14"
Operating Pressure 120-145psi
Weight 440kg
Drive Motor 230 V DV MI mtotor
